Acid-Bases

2024-07-1015:56 Status:IBnotes Tags: Reaction equilibrium

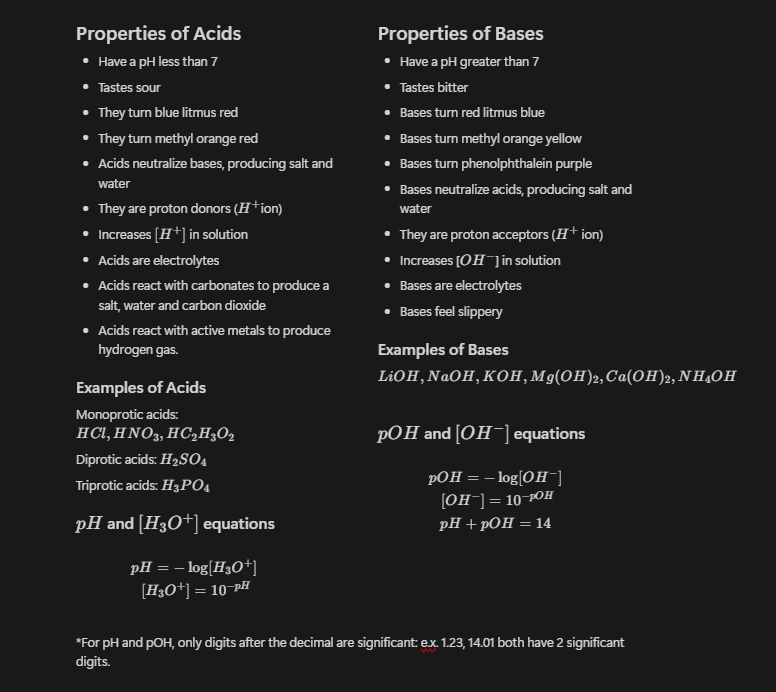

Review of Acid-Bases

Water equilibrium

At standard conditions, water is in the following equilibrium: $2 H_{2} O_{(l)} ⇌ H_{3} O_{(a q)}^{+} + O H_{(a q)}^{-} K_{c} = K_{w} = 1.0 \times 1 0^{- 14}$ $K_{a}$ = acid ionizations constant. ( $H F_{(a q)} + H_{2} O_{(l)} ⇌ H_{3} O_{(a q)}^{+} + F_{(a q)}^{-}$ ) $K_{b}$ = base ionization constant. ( $F_{(A q)}^{-} = H_{2} O_{(a q)} ⇌ O H_{(a q)}^{-} + H F_{(a q)}$ ) They are conjugate acid-base pairs. $\frac{1}{K _{a}} \neq = K_{b}$ These are not reverse reactions. Rather: $K_{a} \times K_{b} = (\frac{[ H _{3} O ^{+} ] [ F ^{-} ]}{H F}) (\frac{[ O H ^{-} ] [ H F ]}{[ F ^{-} ]}) = [H_{3} O^{+}] [O H^{-}] = K_{w}$ Because $K_{w}$ is temperature dependent, the $p H$ of the water can fluctuate. $K_{w}$ can be used to convert $[H_{3} O^{+}]$ and $[O H^{-}]$ directly.

Example 1

What is the $[O H^{-}]$ in a solution with a $p H$ of $14.25$ ?

Method 1

Method 2: $\begin{gather} [H_3O^+]=10^{-(pH)} = 10^{(-14.25)}= 5.623 \times 10^{-15} \\ \ [OH^-] = \frac {K_w}{[H_3O^+]}= \frac {1.0 \times 10^{-14}}{5.623 \times 10^{-15}}= 1.8 \frac {mol} L \end{gather}$

Strengths of Acids and Bases

Strength of Acids

Strong acids ionize completely in water and are quantitative reactions. For example: $H C l_{(a q)} + H_{2} O_{(l)} \to H_{3} O_{(a q)}^{+} + C l_{(a q)}^{+}$ Weak acids ionize partially and are measured and quantified by $K_{a}$ . An example of this is: $C H_{3} COO H_{(a q)} + H_{2} O_{(l)} ⇌ H_{3} O_{(a q)}^{+} + C H_{3} CO O_{(a q)}^{-}$ .

Example 2

What is the $p H$ of $0.10 M C H_{3} COO H_{(a q)}$ ( $K_{a}$ is $1.8 \times 1 0^{- 5}$ ) and

	CH3COOH(aq)	H3O+(aq)	CH3COO-(aq)
I	0.10	0	0
C	-x	+x	+x
E	0.10-x	x	x

$1.8 \times 1 0^{- 5} = \frac{x ^{2}}{0.10 - x} \approx \frac{x ^{2}}{0.1} x = 0.00134... M p H = - lo g (0.00134...) = 2.87$

Strengths of Bases

A strong base are metal hydroxides that dissociate completely. When they enter water, they produce $O H^{-}$ directly. Ignore $M g (O H)_{2 (a q)}$ . $N a O H_{(a q)} \to N a_{(a q)}^{+} + 3 O H_{(a q)}$ A weak base is any compound that reacts with water to produce $O H^{-}$ . (Must have water) $N H_{3 (a q)} + H_{2} O_{(l)} ⇌ O H_{(a q)}^{-} + N H_{4 (a q)}^{+}$

Example 3

What is the $K_{b}$ for $H S O_{3 (a q)}^{-}$ ? (If $K_{b}$ is being asked for, treat the substance as a base. Find the conjugate acid) $K_{w} = K_{a} K_{b} \to K_{b} = \frac{K _{w}}{K _{a}} K_{b} = \frac{1.0 \times 1 0 ^{- 13}}{1.4 \times 1 0 ^{- 2}} = 7.1 \times 1 0^{- 13}$

Example 4

What is the $p H$ of a $0.10 \frac{m o l}{L}$ sodium hydrogen sulfite solution? Provide a reason why it should be treated as an acid. $N a H S O_{3 (a q)} \to N a_{(a q)}^{+} + H S O_{3 (a q)}^{-}$ This should be treated as an acid for the following reason:

$H S O_{3 (a q)} K_{a} = 6.3 \times 1 0^{- 8} H S O_{3 (A q)}^{-} K_{b} = \frac{1.0 \times t o ^{- 14}}{1.4 \times 1 0 ^{- 2}} = 7.1 \times 1 0^{- 13}$

	HSO3(aq)-	H3O(aq)+	SO3(aq)-
I	0.10	0	0
C	-x	+x	+x
E	0.10-x	x	x
$6.3 \times 1 0^{- 8} = \frac{x ^{2}}{0.10 - x} \to_{a pp ro x} 6.3 \times t o^{- 8} = \frac{x ^{2}}{0.10} x = 7.94 \times 1 0^{- 5} p H = 4.10$

Example 5

What is the $p H$ of a $0.10 \frac{m o l}{L}$ ammonia solution.

Brønsted-Lowry (BL) Theory of Acids and Bases

BL Acids

Acids are defined as compounds that donate protons, $H^{+}$ . Those protons bond with $H_{2} O_{(l)}$ to form $H_{3} O_{(a q)}$ . (Note that acids can donate $H^{+}$ ions to other substances)

Strong BL acid example

$H_{2} S O_{4 (a q)_{s t ro n g a c i d}} + H_{2} O_{(l)_{ba se}} \to H_{3} O_{(a q)_{co nj ug a t e a c i d}}^{+} + H S O_{4 (a q)_{co nj ug a t e ba se}}^{-}$

$H_{2} S O_{4 (a q)}$ is the strongest acid and as $H_{2} O_{(l)}$ is the strongest base, the two react with each other. As $H_{2} S O_{4 (a q)}$ donates a $H^{+}$ ion to the $H_{2} O_{(l)}$ molecule, $H_{2} S O_{4 (a q)}$ acts as the acid and $H_{2} O_{(l)}$ acts as the base. The conjugate base for $H_{2} S O_{4 (a q)}$ is $H S O_{4 (a q)}^{-}$ and the conjugate acid for $H_{2} O_{(l)}$ is $H_{3} O_{(a q)}^{+}$ . Because this is a strong acid, it is a $> 99.9%$ forward reaction and is considered a quantitative reaction (Hence the ‘→’)

Weak BL acid example

$H_{3} P O_{4 (a q)_{w e ak a c i d}} + H_{2} O_{(a q)_{ba se}} ⇌ H_{3} O_{(a q)_{co nj ug a t e a c i d}}^{+} + H_{2} P O_{4 (a q)_{co nj ug a t e ba se}}^{-}$

$H_{3} P O_{4 (a q)}$ is the strongest acid (despite being considered a weak acid it is still a stronger acid than $H_{2} O_{(l)}$ ). Whereby $H_{3} P O_{4 (a q)}$ acts as the acid as it donates a $H^{+}$ to the $H_{2} O_{(l)}$ molecule and $H_{2} O_{(l)}$ acts as the base as it accepts the $H^{+}$ ion. The conjugate base for $H_{3} P O_{4 (a q)}$ is $H_{2} P O_{4 (a q)}^{-}$ as the reverse reaction takes a $H^{+}$ ion from the $H_{3} O^{+}$ ion. Similarly, for $H_{2} O_{(l)}$ , it accepts a $H^{+}$ ion and acts as a base in the forward reaction. However, it’s conjugate acid, $H_{3} O_{(a q)}^{+}$ donates a $H^{+}$ ion to $H_{2} P O_{4 (a q)}$ in the reverse reaction. Because this is a weak acid, it is an equilibrium reaction, and $⇌$ are used to denote this behavior.

BL Bases

Bases are defined as substances that can accept a form of $H^{+}$ from water and create $O H^{-}$ . Whereby bases are proton acceptors. (It can also accept $H^{+}$ from a variety of different compounds, not solely from water.) $H_{2} O_{(l)}$ in these interactions can act as an acid, donating $H^{+}$ if there is a stronger base.

Strong bases

$B a (O H)_{2 (a q)} \to B a_{(a q)}^{2 +} + 2 O H_{(a q)}^{-}$ Note that $B a (O H)_{2 (a q)}$ does not react with water, as it is already an ionic compound that dissociates in water, unlike the acids which have to ionize. This relationship is depicted using a ‘→’ as dissociation is a process that does not likely result in a reverse reaction ( $> 99%$ .)

Weak bases

Weak bases are the conjugate bases of all the weak acids.

The conjugate bases of the strong acids do not meet the qualification of a base and should be considered neutral. ( $Cl O_{4}^{-}, I^{-}, B r^{-}, C l^{-}, H S O_{4}^{-}, N O_{3}^{-}$ )

Ionic substances

Ionic substances often produce a conjugate base to a weak acid. For example:

Example 6

$N a C N_{(a q)} \to N a_{(a q)_{n e u t r a l}}^{+} + C N_{(a q)_{w e ak ba se}}^{-} C N_{(a q)}^{-} + H_{2} O_{(l)} ⇌ H C N_{(a q)} + O H_{(a q)}^{-}$

Amphiprotic ions and substances

Some ions can act as both an acid or a base. A common trend for such ions is having at least one free (as in not bonded to a polyatomic ion) $H^{+}$ and having an overall charge of $1 -$ or less. This allows for $H^{+}$ ions to be accepted and donated. In addition, water can act as both an acid and a base. Some examples include: $H S O_{3 (a q)}^{-}, H_{2} P O_{4 (a q)}^{-}, H C O_{3 (a q)}^{-}, H P O_{4 (a q)}^{2 -}, H OOCCO O_{(a q)}^{-}$ However, based on their $K_{a} / K_{b}$ value, they will have a tendency to act more like an acid/base. ** An important note that $H S O_{4 (a q)}^{-}$ acts as an acid exclusively.

Amphoteric but not amphiprotic substances

An amphoteric substance is any substance that can act as both an acid and a base. Amphiprotic - through the donation/acceptance of $H^{+}$ . There are also non-amphiprotic but amphoteric substances. Primarily Oxides and hydroxides such as: $A l_{2} O_{3 (s)} + 6 H C l_{(a q)} \to A lC l_{3 (a q)} + 3 H_{2} O_{(l)} A l_{2} O_{3 (s)} + 2 N a O H_{(a q)} + 3 H_{2} O_{(l)} \to 2 N a [A l (O H_{4}]$

5 Step BL method

List all entities present (ions, molecules, molecules). Dissociate ionic compounds and ionize strong acids if necessary.
Identify and label all compounds as acidic, basic or neutral.
Identify the strongest acid and strongest base.
1. Acids that are ‘higher up’ on the table within the data book or have a higher $K_{a}$ value are the stronger acid.
2. Bases that are ‘lower down’ on the table within the data book or have a lower $K_{a}$ value (subsequently having a higher $K_{b}$ value) are the stronger base.
Isolate the strongest acid and base and create a separate equation showing the transfer of a proton, $H^{+}$ directly between the two.
Predict the equilibrium position (reactant favored or product favored)
1. If an acid is positioned higher relative to the base on the table within the data book, then the reaction is product favored.
2. If the base is positioned higher relative to the acid then the reaction is product favored.

Example 7

Predict the BL equation and equilibrium position for the reaction between nitrous acid and sodium acetate.

Step 1	HNO2(aq)	Na(aq)+	CH3COO(aq)-	H2O(l)
Step 2	Acid	Neutral	Base	Acid/Base
Step 3	Strongest acid	-	Strongest base	-

Step 4: $H N O_{2 (a q)} + C H_{3} CO O_{(a q)}^{-} ⇌ N O_{2 (a q)}^{-} + C H_{3} COO H_{(a q)}$ Step 5: Product favored.

BL Exceptions

Carbonates

Carbonates and bicarbonates neutralize acids to produce water and carbon dioxide. $\begin{gather} CaCO_{3(s)} +2HCl _{(aq)} \rightleftharpoons CaCl_{2(aq)} + H_2O_{(l)} +CO_{2(g)} \\ NaHCO_{3(s)} +H_2SO_{4(aq)} \rightleftharpoons NaHSO_{4(aq)} +H_2O_{(l)} +CO_{2(g)} \end{gather}$

Acidic metals

$M g_{(s)} + 2 H C l_{(a q)} ⇌ M g C l_{2 (a q)} + H_{2 (g)}$

Metal oxides (basic)

$C u O_{(a q)} \to C u^{2 +} + O_{(a q)}^{2 -} O_{(a q)}^{2 -} + H_{2} O_{(l)} ⇌ 2 O H_{(a q)}^{-}$

Non-metal oxides (acidic) $C O_{x}, N O_{x}, S O_{x}$

$C O_{2 (g)} + H_{2} O_{(l)} ⇌ H_{2} C O_{(a q)} N O_{2 (a q)} + H_{2} O_{(l)} ⇌ H_{2} N O_{3 (a q)_{a c i d r ain}} S O_{2 (a q)} + H_{2} O_{(l)} ⇌ H_{2} S O_{(4 (a q)_{a c i d r ain}}$

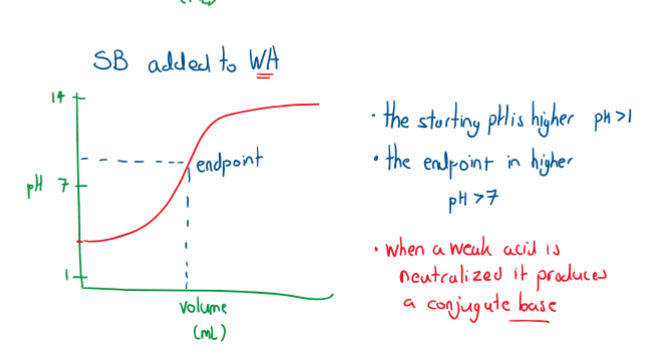

pH Curves

The variation in $p H$ that occurs during an acid-base reaction is what a $p H$ curve visualizes. Where the $p H$ is plotted against the a volume of titrant added to the sample. Examples of a strong base/strong acid titrations:

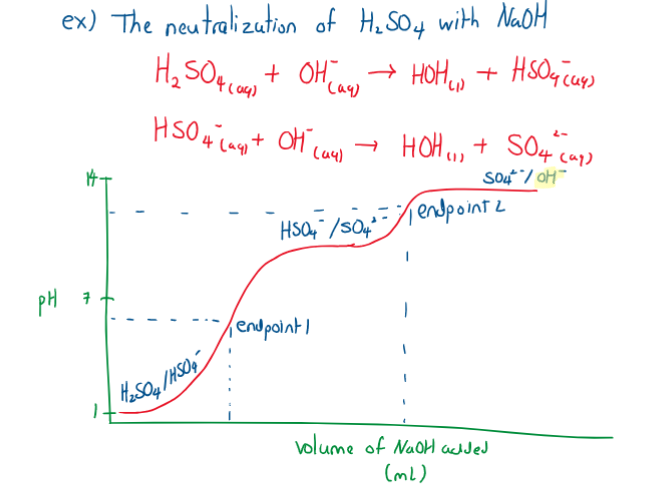

Polyprotic titration curves

A polyprotic compound is a compound that can donate more than one proton: $(H_{2} S O_{4}, H_{2} S O_{3}, H_{2} C O_{3}, H_{3} P O_{4})$ . A polybasic compound is a compound that can accept more than one proton, and often is a conjugate base of a polyprotic acid: $(C O_{3}^{2 -}, P O_{4}^{2 -}, S O_{3}^{2 -})$ . Additionally, there are amphiprotic substances that can accept or donate $H^{+}$ ions.

For these titrations, only one proton is transferred at a time.

Example 8

Example 9

Indicators

A solution of weak acid where the acid and its conjugate base have different color. Several indicators are abbreviated as they are massive, complex molecules. For example phenolphthalein has a chemical formula of $C_{20} H_{14} O_{4 (a q)}$ but is referred to as $H P h_{(a q)}$ The point where the color change occurs is when the concentration of the indicator, $[H I n]$ is the same as its conjugate base, $= [I n^{-}]$ or when $K_{a} = [H_{3} O^{+}]$ $- l o g (K_{a}) = p K a = p H$ .

$H I n_{(a q)} + H_{2} O_{(l)} ⇄ H_{3} O_{(a q)}^{+} + I n_{(a q)}^{-}$

$K_{a} = \frac{[ H _{3} O ^{+} ] [ I n ^{-} ]}{[ H I n ]}$

Example 6:

Predict the $p H$ where methyl orange will change color $K_{a} = [H_{3} O] = 3.5 \times 1 0^{- 4} - l o g (3.5 \times 1 0^{- 4}) = 3.456 3.2 < 3.456 < 4.4$

The $p H$ at which an indicator changes color is called the transition point, and lies between within the range in the data-booklet. (This value is subjective)

How does an indicator work?

Adding $H_{3} O_{(a q)}^{+}$ or $O H_{(a q)}^{-}$ , an equilibrium shit occurs. For example: $H P h_{(a q)_{co l o u r l ess}} + H_{2} O_{(l)} ⇌ H_{3} O_{(a q)}^{+} + P h_{(a q)_{p ink}}^{-}$

If $H_{3} O^{+}$ is added the concentration of $H_{3} O^{+}$ increases, the equilibrium shifts left and becomes ‘more colorless’.
If $O H^{-}$ is added, the concentration of $O H^{-}$ increases, the equilibrium shifts right and becomes ‘more pink;’. (neutralization)

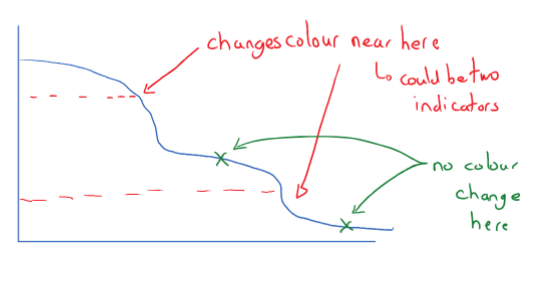

Choosing indicators

An indicator should change color near the endpoint of the reaction. When choosing an indicator do not choose the one that changes along one of the ‘buffer zones’ An indicator should change color near or at the end point of the reaction. The indicator must not change color in the buffer zone. (If there is only one color change, there is no buffer zone)

When indicating color change, make sure to state $x$ to $y$ . (E.g. red to blue)

Buffers

An acid-base buffer helps reduce the impact of adding a stress to a system (such as adding an acid or base). A buffer is made up of roughly equal concentrations of a weak acid and its conjugate base. This is not natural.

$H_{3} COO H_{(a q)} (0.50 M) + H_{2} O_{(l)} ⇌ C H_{3} CO O_{(a q)}^{-} (0.50 M) + H_{3} O_{(a q)}^{+}$

To make the buffer above, there are two methods to do so:

Take the weak acid, and add its conjugate base in the form of ionic salt. E.g. $C H_{3} COO H_{(a q)} (0.50 M) + N a C H_{3} CO O_{(a q)}^{-} (0.50 M)$
Take the weak acid, and convert half of it by adding a strong base. E.g. $C H_{3} COO H_{(a q)} (1.0 M \to 0.50 M) + O H_{(a q)}^{-} \to C H_{3} CO O_{(a q)}^{-} + H_{2} O_{(l)}$

Blood example

A great example is human blood: Which buffers against all the acids we like to eat. In addition to this, blood can act as an important breathing censor. $C O_{2 (g q)} + H_{2} O_{(l)} ⇌ H_{2} C O_{3 (a q)} + H_{2} O_{(a q)} ⇌ H_{3} O_{(a q)}^{+} + H C O_{3 (a q)}^{-}$

Buffer Capacity

Is the measure of the ability to resist $p H$ change. Higher concentrations of buffers resists more

$β = \frac{n}{Δ p H}$

Where $β$ is the buffer capacity, $n$ is the amount of moles . The amount of (moles) of a/b needed to change 1L of buffer pH by 1.

Equilibrium of Acid-Bases

Since $K_{a}$ and $K_{b}$ vary over such a great range that another log scale can be applied. $\begin {gather} pKa = -\log(K_a) \ \ \ pK_b =-\log (K_b ) \\ K_a = 10^{-pK_a} \ \ \ K_b = 10^{-pK_b} \\ pK_a +pK_b = 14 =pK_w \end{gather}$ This information can be found in table 21 in the IB data booklet.

Hydrolysis

Hydrolysis is a reaction with water $\begin{gather} SA \ \ \ HCl_{(aq)} +H_2O_{(l)} \to H_3O^+_{(aq)} +Cl^-_{(aq)} \\ WA \ \ \ \ \ \ HF_{(aq)} +H_2O_{(l)} \rightleftharpoons H_3O^+ _{(aq)} +F^-_{(aq)} \\ SB \ \ \ \ Ba (OH)_{2(aq)} \to_{H_2O} 2OH^-_{(aq)} + Ba^{2+}_{(aq)} \\... \end{gather}$

For amphiprotic species, a comparison of their $K_{a}$ and $K_{b}$ is done. The larger value,

Brønsted-Lowry (BL) Model

Acids are compounds that donate a $H^{+}$ ion to water and create $H_{3} O^{+}$ , can also donate to other species. A BL acid is a proton, $(H^{+})$ donor. Bases are compounds that can accept a $H^{+}$ ion from water and create $O H^{-}$ , can also receive from other species. A BL base is a proton, $(H^{+})$ donor. $\begin{gather} SA \ \ \ \ H_2SO_{4(aq)_{acid} }+H_2O_{(l)_{base}} \to H_3O^+ _{(aq)} + HSO_{4(aq)}^- \\ WA \ \ \ H_3PO_{4(aq)_{acid}} + H_2O_{(l)_{base}} \rightleftharpoons H_3O^+_{(aq)_{base}}+H_2PO_{4(aq)_{base}} \end{gather}$

Water acts as a base within the $S A$ , strong acid and example

Lewis Acid-Bases

Lewis acids

A Lewis acid is an electron pair acceptor. Which is a material that must be electron deficient. Wherein they must have empty orbitals and must be ‘positively’ charged.

Lewis acids extend the definition of an acid as an electron pair acceptor does not necessarily have to give away a $H^{+}$ to accept the electron pair.

A Lewis acid often creates a scenario where the $H^{+}$ from a nearby water molecule is donated instead. Lewis acids ‘encourage’ other materials to be acidic.

Lewis base

A Lewis base is a material that donates an electron-pair (lone pairs or electrons in $π$ bonds) In addition, an electron pair donor, a LB can always donate electrons to $H^{+}$ , which is the same as accepting/attracting $H^{+}$ , a BL base.

The Lewis definition does not add any new bases,

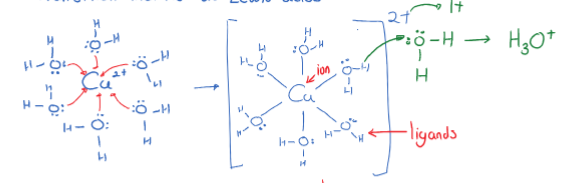

Transition metals as complex ions

When a transition metal is dissolved, it will have a positive charge. This positive charge will attract the negative dipole of ligands such as water molecules. Because such transition metals have a high amount of compounds that have a hydrogen ion surrounding the ion, the bonded hydrogen is more likely to be donated to another substances. This forms a complex metal ion (mad of ion (metal) and ligands (usually water) that have a coordinate covalent bond. Common examples include $C u^{2 +}$ and $A l^{3 +}$ .

$\begin{gather} Cu^{2+}_{(aq)} +6H_2O \rightleftharpoons [Cu(H_2O)_6]^{2+} _{(aq)} + H_2O \rightleftharpoons [Cu(H_2O)_5OH]^{+}+ H_3O^+_{(aq)} \\ Cu^{+2}+7H_2O_{(l)} \rightleftharpoons [Cu(H_2O)_5OH]^+_{(aq)} +H_3O^+_{(aq)} \end{gather}$

The bonds that form between ion and ligands have a special name: coordinate covalent bond/dative bond. Wherein a covalent bond where only one partner provides both electrons.

Non-metal oxides ( $S O_{x}, N O_{x}, C O_{x}$ ) and acid anhydrides:

$S O_{3 (a q)_{l e w i s a c i d}} + H_{2} O_{(l)} ⇌ H_{2} S O_{4 (a q)_{B L a c i d}} + H_{2} O \to H_{3} O_{(a q)}^{+} + H S O_{4 (a q)}^{-}$

Henderson Hasselbalck

$p H$ of a buffer: $p H = p K a + l o g (\frac{[ ba se ]}{[ a c i d ]})$ .

Example n.1:

What is the $p H$ of the $C H_{3} COO H (0.50 M) / C H_{3} CO O^{-} (0.50 M)$ buffer system?

$\begin{gather} pH =pKa + log (\frac {[base]}{[acid]}) \\ pH = -log(1.8 \times 10 ^-5 )+ log(\frac {0.50}{0.50}) \\pH = 4.74 \end{gather}$

Example n.2

What happens when $0.020 M H C l_{(a q)}$ is added to this buffer system? $\begin{gather} CH_3COOH = 0.50M \to 0.52M \\CH_3COO^-= 0.50 M \to 0.48M \\pH = -\log (1.8 \times 10^{-5} ) + \log (\frac {0.48}{0.52}) \\pH = 4.71 \end{gather}$
